Independent sealed-unit manufacturer · Wombwell, Barnsley
Sealed units, made to measure in Barnsley.
Double and triple glazing, slimline heritage units, stained and etched glass. Any shape, any size, inspected before it leaves. Trade and public.
- Same-day collection
- Inspection beyond GGF standards
- Clean, scratch-free units
Standard 28 mm unit
4 Clear / 20Ar / 4 Soft-coat Low-E
U-value
1.2W/m²K
Thickness
28mm
Weight
20kg/m²
What we make
One factory, the whole window.
Everything here is cut, built and finished in Wombwell. If you need one pane or a van load, it comes from the same bench.

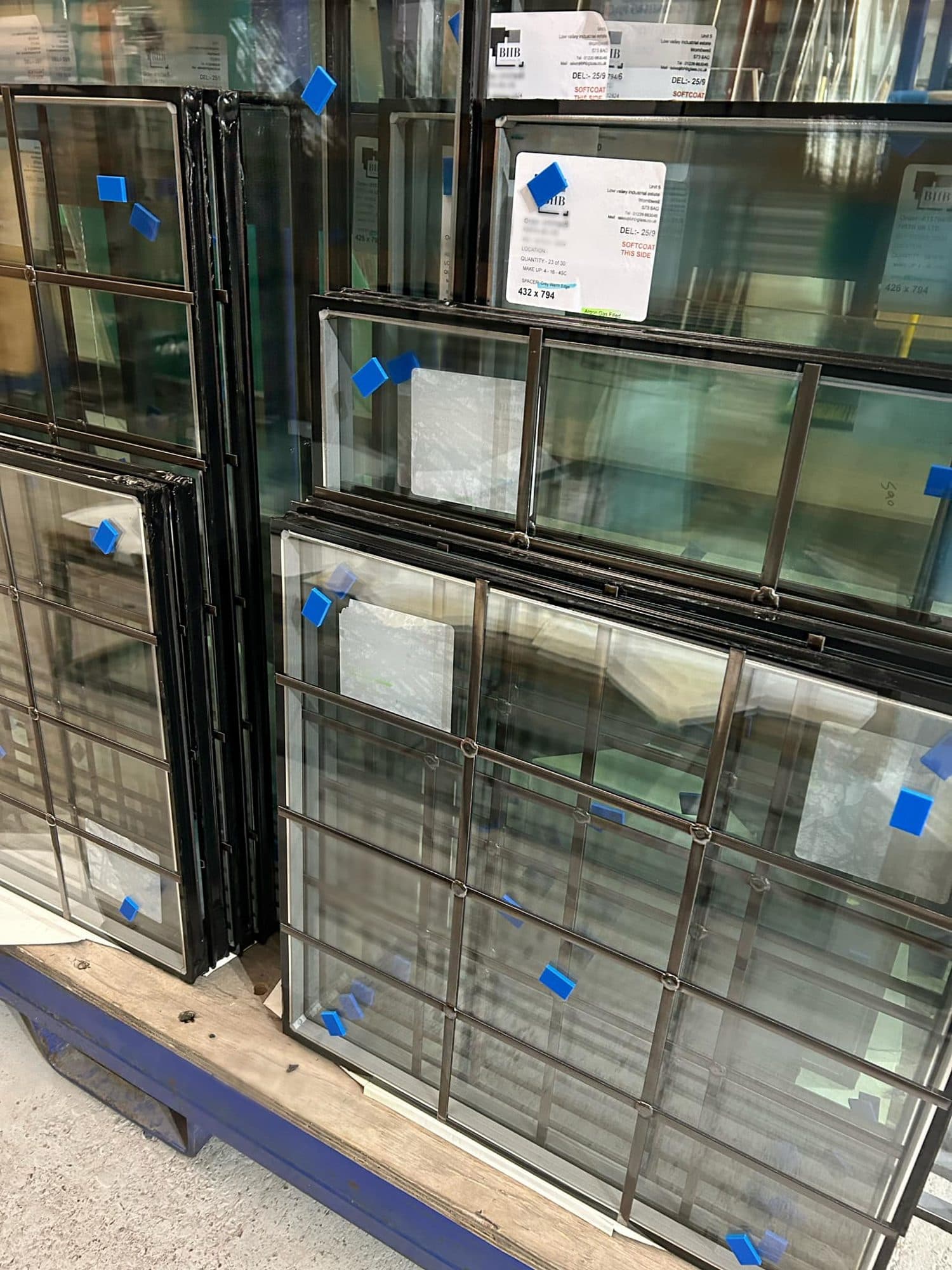

Insulated glass units
Made in Wombwell, Barnsley

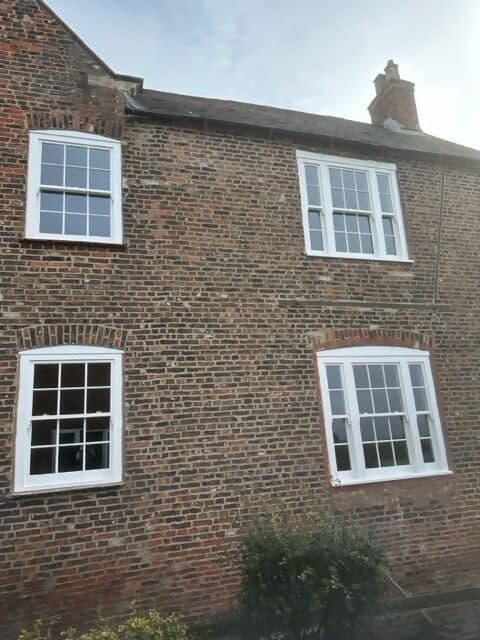

Slimline heritage units
For period properties and conservation areas

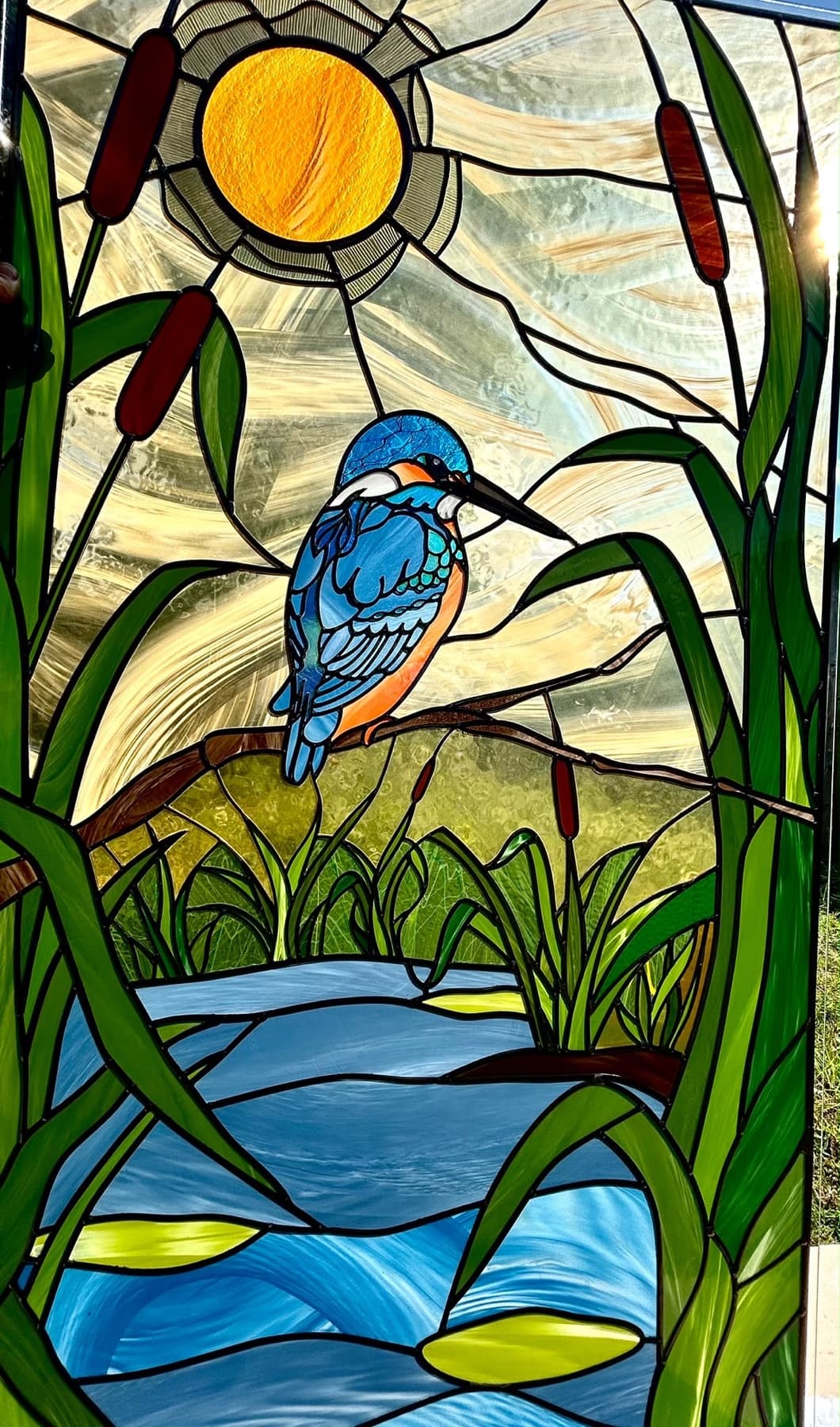

Stained glass
The Heritage range, drawn in-house

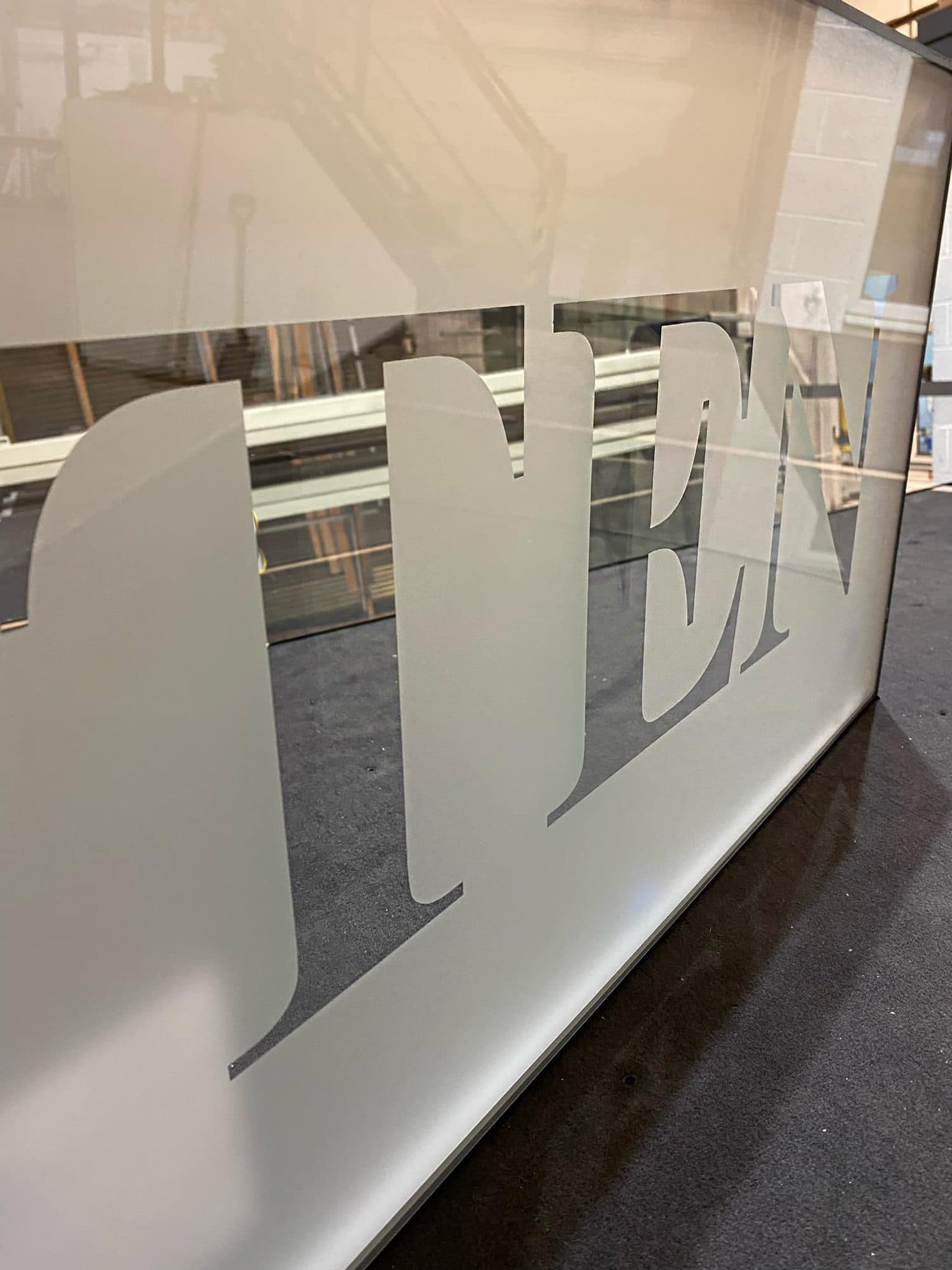

Etched glass
In-house etching facility

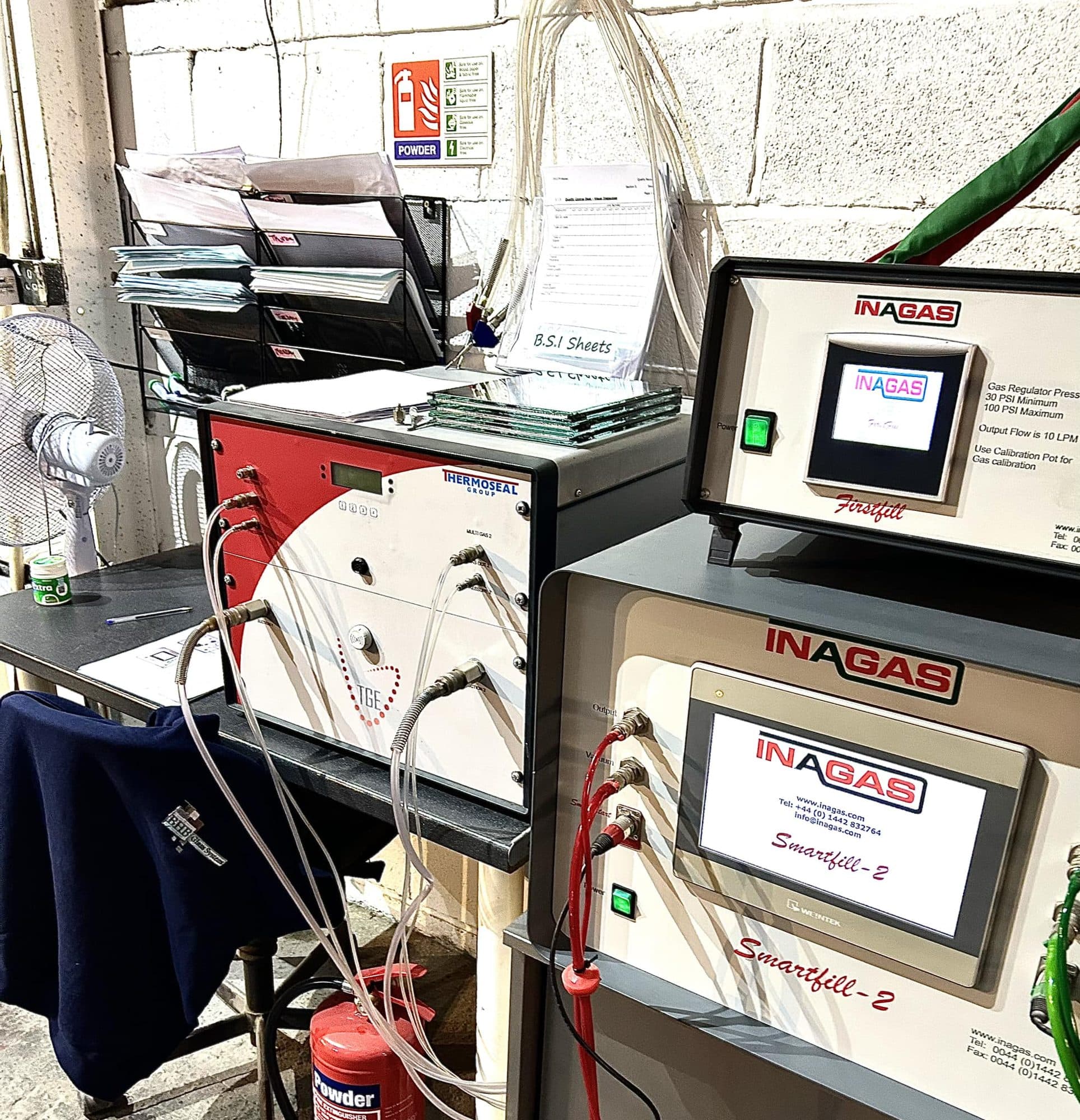

Argon and krypton gas filling
Lower U-values from the cavity
Glass types
Combine each type to make your ideal unit
Build a unit
Spec it the way you would order it.
Pick the panes, the cavity and the gas, and read the sheet: U-value, thickness, weight, light, solar, sound. Soon with your trade price and a send-to-factory button.
The everyday uPVC and aluminium window unit
Standard 28 mm unit
4 Clear / 20Ar / 4 Soft-coat Low-E
U-value
1.2W/m²K
Thickness
28mm
Weight
20kg/m²
Light
80% LT
Solar
0.63g
Sound
32dB Rw
Typical values for a generic make-up, calculated to EN 673 (U-value) and EN 410 (light and solar). Figures for your order are confirmed when we quote it.
Anyone can quote. Trade accounts order at their own prices.

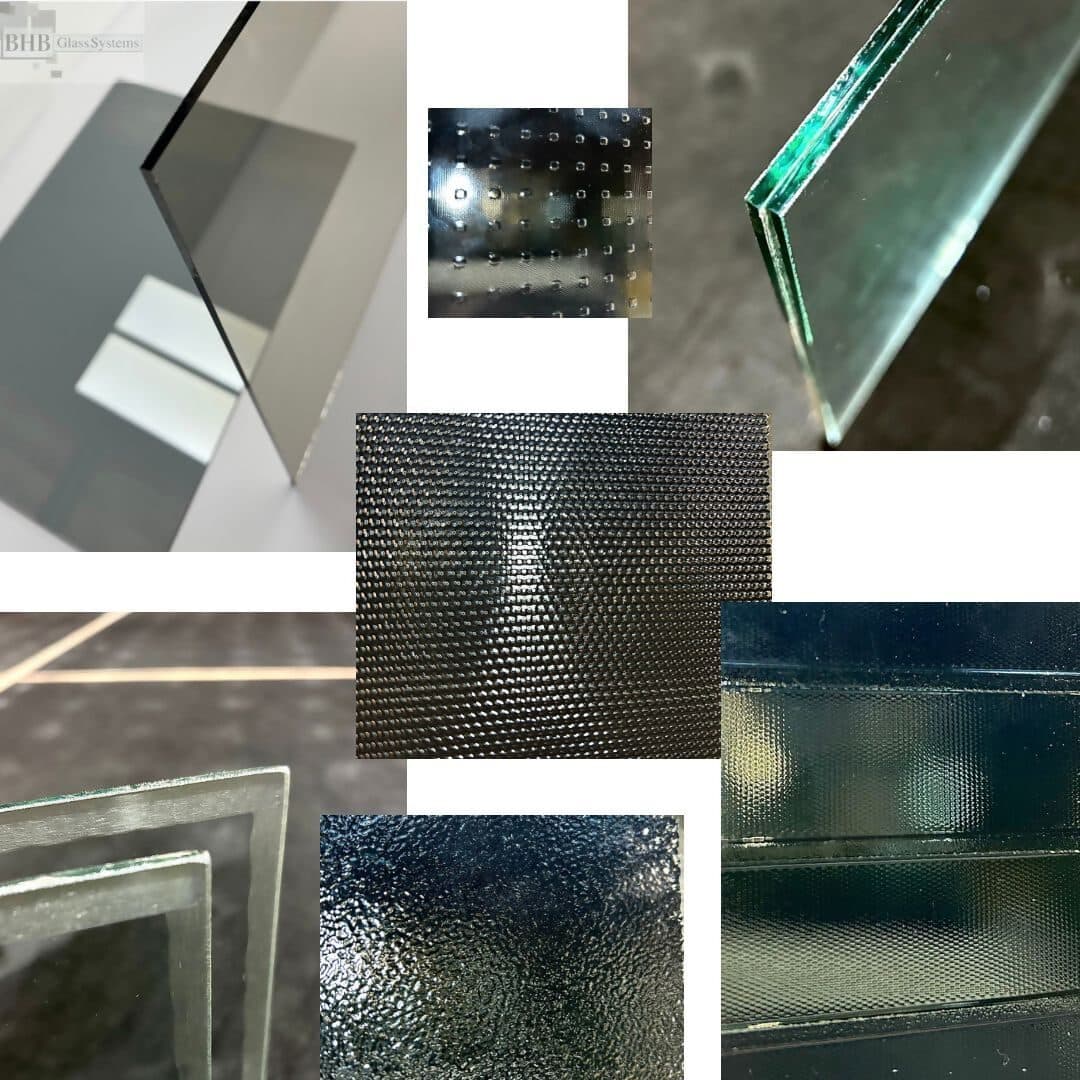

Glass types
Seven kinds of glass. Any of them toughened.
The thickness range is the honest spec. It tells you what a pane can be before it goes into a unit, and that is where a U-value, a sound figure or a security rating starts.
All glass types- 2–19 mm
Clear float
The most common glass in houses today. Distortion-free, smooth and with high light transmittance. Very versatile.
- 3–8 mm
Low-emissivity (Low-E)
Reflects heat back into the room. Glazed to the interior face of the unit. Hard-coat or soft-coat, with soft-coat the usual choice because it reaches the lowest U-values.
- 4–10 mm
Solar control
Reduces the heat entering a room while keeping high levels of natural light. For large south-facing glass and roofs.
- 6.8–16.8 mm
Acoustic laminated
A plastic or resin interlayer damps the frequencies passing through the glass. A typical build is 3 mm, 0.8 mm interlayer, 3 mm: 6.8 mm overall.
- 3–10 mm
Low maintenance
A coating that breaks down dirt and lets rain rinse it away, so the glass needs cleaning less often. It does not mean never.
- 4–6 mm
Textured
Privacy and decoration in many patterns: Stippolyte, Contora, Satin, Minster and more.
- 4.4–21.5 mm
Safety and security
Impact and penetration resistance, delaying intruders or reducing injury. Toughened for impact, laminated to hold together.
Why fitters come back
Clean units, straight answers, short lead times.
A small independent firm can work to your timeframe and your budget. Our quality control goes further than the Glass and Glazing Federation asks, and it shows in a unit that is square, clean and scratch-free when you unwrap it.
- Commercial and domestic
- Glass for windows, doors and more
- Unrivalled product knowledge
- Same-day collection
- Unmatched decorative work
- A trusted five-star reputation
“Fabulous hard-working team at BHB Glass Systems, really helpful and knowledgeable staff. Nothing too little or too much to help with. Highly recommend.”
Samantha Wood · Facebook review
“Nice, friendly and helpful team. Would recommend them for all your double-glazed unit needs.”
Karen Langford · Facebook review
Looking for new glass or sealed units?
Call with your sizes, or build the unit online and send it to us. As a small independent business we can get you exactly what you need, quickly.
